• Quantization: Store the parameters of the model in lower precision
  • Knowledge Distillation: Train a smaller model (student) using a original model (instructor)
  • Pruning: Remove connections (weights) from the model

FP32

  • Sign: 1 bit
  • Exponent (range): 8 bits
  • Fraction (precision): 23 bits
  • Total: 32 bits

Quantization

Quantization refers to the process of mapping a large set to a smaller set of values. For example, mapping the continuous range of real numbers [-234.1, 251.51] to a discrete set of integers [-128, 127].

Neural Network Quantization

You can quantize:

  • The weights: Neural network parameters
  • The Activations: Values that propagate through the layers of the neural network

If you quantize the NN after it has been quantized, you are doing post training quantization(PTQ)

Advantages of Quantization

  • Smaller model
  • Speed gains
    • Memory bandwidth: Less data to transfer
    • Faster operations
      • GEMM: General Matrix Multiply
      • GEMV: General Matrix Vector Multiplication

Challenges of Quantization

  • Quantization error
  • Retraining (Quantization Aware Training, QAT)
  • Limited hardware support
  • Calibration dataset needed
  • Packing/unpacking

Linear Quantization

  • Idea: linear mapping
  • Formula:

$$ r=s(q-z) $$

$s$ is the scale factor, $z$ is the zero point, $r$ is the real value (e.g. in FP32), $q$ is the quantized value (e.g. in INT8).

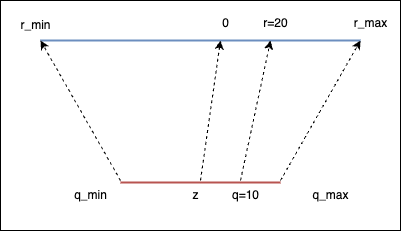

Linear Quantization

Example with $s=2$, and $z=0$:

  • We got $r=2(q-0)=2q$
  • For $q=10$, we have $r=20$

Getting q

$$ r=s(q-z) \implies q=\frac{r}{s}+z \quad (7.4) $$

$$ q=round(\frac{r}{s})+z 7.0 $$

$$ q=int(round(\frac{r}{s})+z) 7 $$

PyTorch

import torch

def linear_q_with_scale_and_zero_point(
    tensor, scale, zero_point, dtype=torch.int8):

    scaled_and_shifted_tensor = tensor / scale + zero_point

    rounded_tensor = torch.round(scaled_and_shifted_tensor)

    q_min = torch.iinfo(dtype).min
    q_max = torch.iinfo(dtype).max

    q_tensor = rounded_tensor.clamp(q_min, q_max).to(dtype)

    return q_tensor

def linear_dequantization(quantized_tensor, scale, zero_point):
    return scale * (quantized_tensor.float() - zero_point)

Test case with random scale and zero point:

test_tensor = torch.tensor(
    [[191.6, -13.5, 728.6],
     [92.14, 295.5, -184],
     [0, 684.6, 245.5]]
)

scale = 3.5
zero_point = -70

quantized_tensor = linear_q_with_scale_and_zero_point(
    test_tensor, scale, zero_point)
tensor([[ -15,  -74,  127],
        [ -44,   14, -123],
        [ -70,  126,    0]], dtype=torch.int8)
dequantized_tensor = linear_dequantization(quantized_tensor, scale, zero_point)
tensor([[ 192.5000,  -14.0000,  689.5000],
        [  91.0000,  294.0000, -185.5000],
        [   0.0000,  686.0000,  245.0000]])
dequantized_tensor - test_tensor
tensor([[  0.9000,  -0.5000, -39.1000],
        [ -1.1400,  -1.5000,  -1.5000],
        [  0.0000,   1.4000,  -0.5000]])
(dequantized_tensor - test_tensor).square()
tensor([[8.0999e-01, 2.5000e-01, 1.5288e+03],
        [1.2996e+00, 2.2500e+00, 2.2500e+00],
        [0.0000e+00, 1.9601e+00, 2.5000e-01]])
(dequantized_tensor - test_tensor).square().mean()
tensor(170.8753)
from helper import plot_quantization_errors

plot_quantization_errors(test_tensor, quantized_tensor, dequantized_tensor)

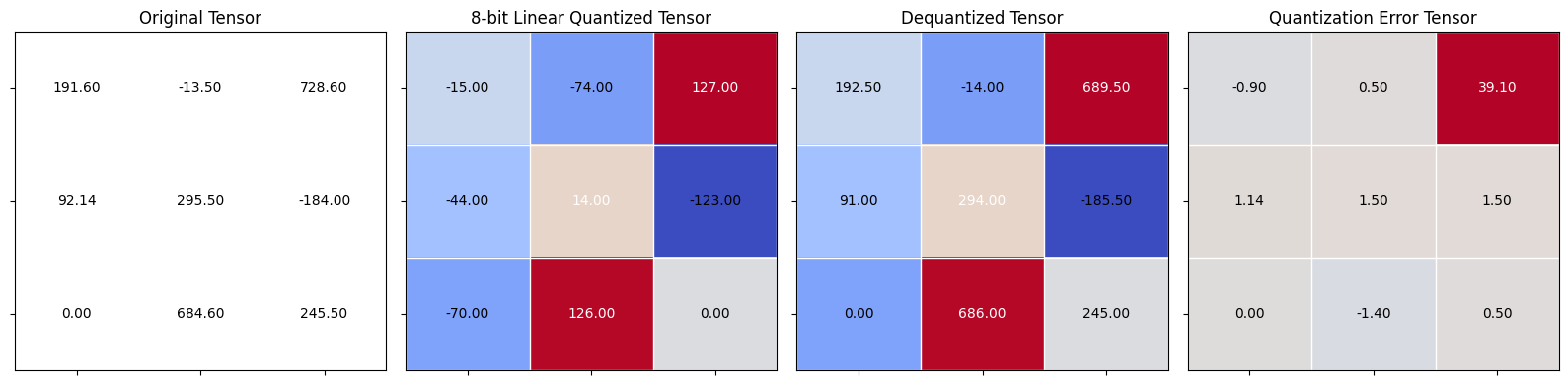

Linear quantizaiton errors with random scale, zero point
